Rotary Table

ONLY on 48"~  10 business day delivery advantage

Available in 36", 48" and 60"

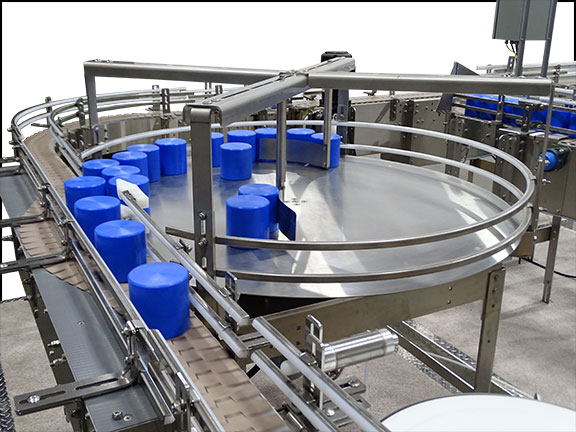

Rotary accumulation tables are a small footprint conveyor solution designed for accumulating and unscrambling products at various points during the conveying or packing processes. An efficient process to balance production rates, a buffer space accumulates product allowing production to continue while downstream product is temporarily stopped. This accumulation solution is also ideal for end of the production lines accumulation needs with limited floorspace. Rotary accumulation tables are often used in conjunction with bulk round, flat-bottom products to be off-loaded in a single-file line.



Production Line Optimization

Variable Frequency Drive (VFD) speed control sets the optimum table rotation speed. Nercon’s rotary accumulation table is designed to handle extremes with ease reducing wear and tear on the motor that can otherwise lead to early motor burnout. Temporarily off-loading product flow due to inconsistent speeds between processes maintains production schedule and decreases downtime.



Seamless Integration

Height adjustable to integrate seamlessly into current production lines, the adjustable supports also allow for leveling on uneven floors to keep the rotary accumulation table stable.

Request a Quote

  • Photo Gallery
  • Video
  • Documents
  • Standard Specs
  • Applications

Rotary Table

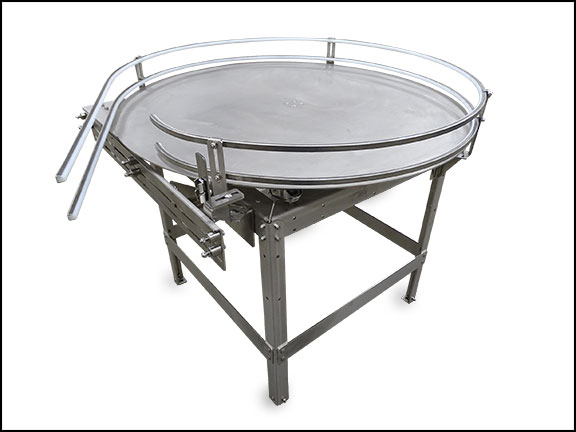

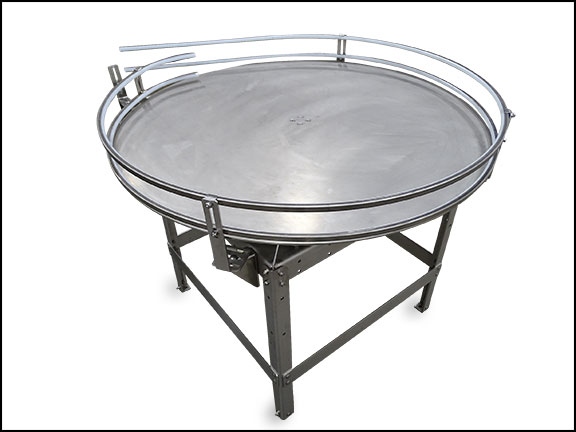

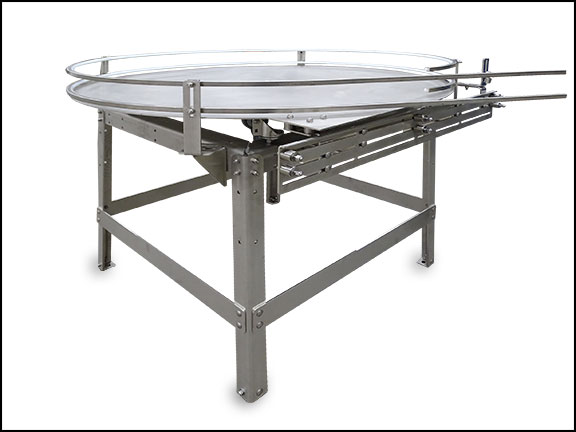

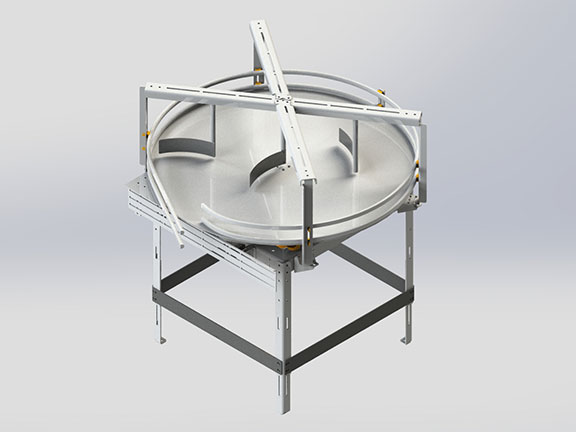

48" Descramble Rotary Table

Rotary Accumulation Table Specifications

Rotary Table: polished stainless steel disc Motor: 1/2 HP, washdown grade gear motor with VFD for easy speed adjustment
Support: ±6” adjustment height Load Capacity: 300 lbs combined weight

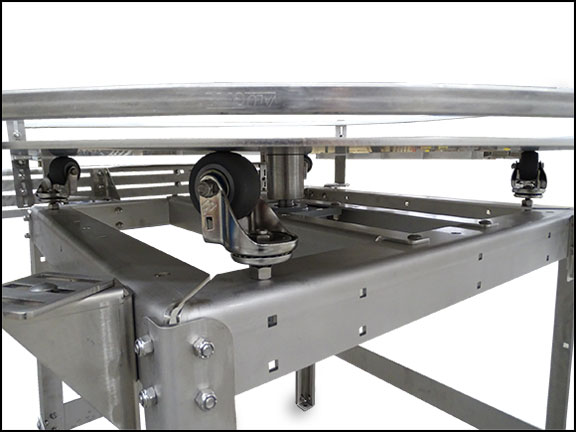

Guide Rail: flips in field to make either right or left handed Disc Suppport: disc casters for true disc edge travel and long life



Canisters Glass Jars and Bottles
PET Bottles Plastic Tubs
Cups Vials
