Draper Z Incline Conveyor

Innovative Draper Z Incline Conveyor

Made to provide manufacturers with an elevation solution that reduces changeover time, Nercon's Draper Z Incline conveyor elevates and lowers varying shaped products consecutively with no need for time-consuming changeover adjustments.

Request A Quote

Draper Z Incline Conveyor

Engineered for Gentle, Secure Inclines

The Draper Z Incline conveyor consists of a lower incline conveyor and an upper “draper” conveyor that gently drapes over the product shape. The self-contouring nature of the upper belt allows for a variety of product shapes, sizes, and weights to be moved while maintaining the integrity of orientation during an incline or decline to the next production stage.

Gentle Product Handling – Draper design gently conforms to product shapes.

Maintains Orientation – Keeps product alignment intact during incline or decline.

Prevents Backsliding – Reduces tipping and slipping.

Steeper Incline Angles – Allows steeper inclines than conventional incline conveyors.

See Our Products in Action

Watch Our Videos

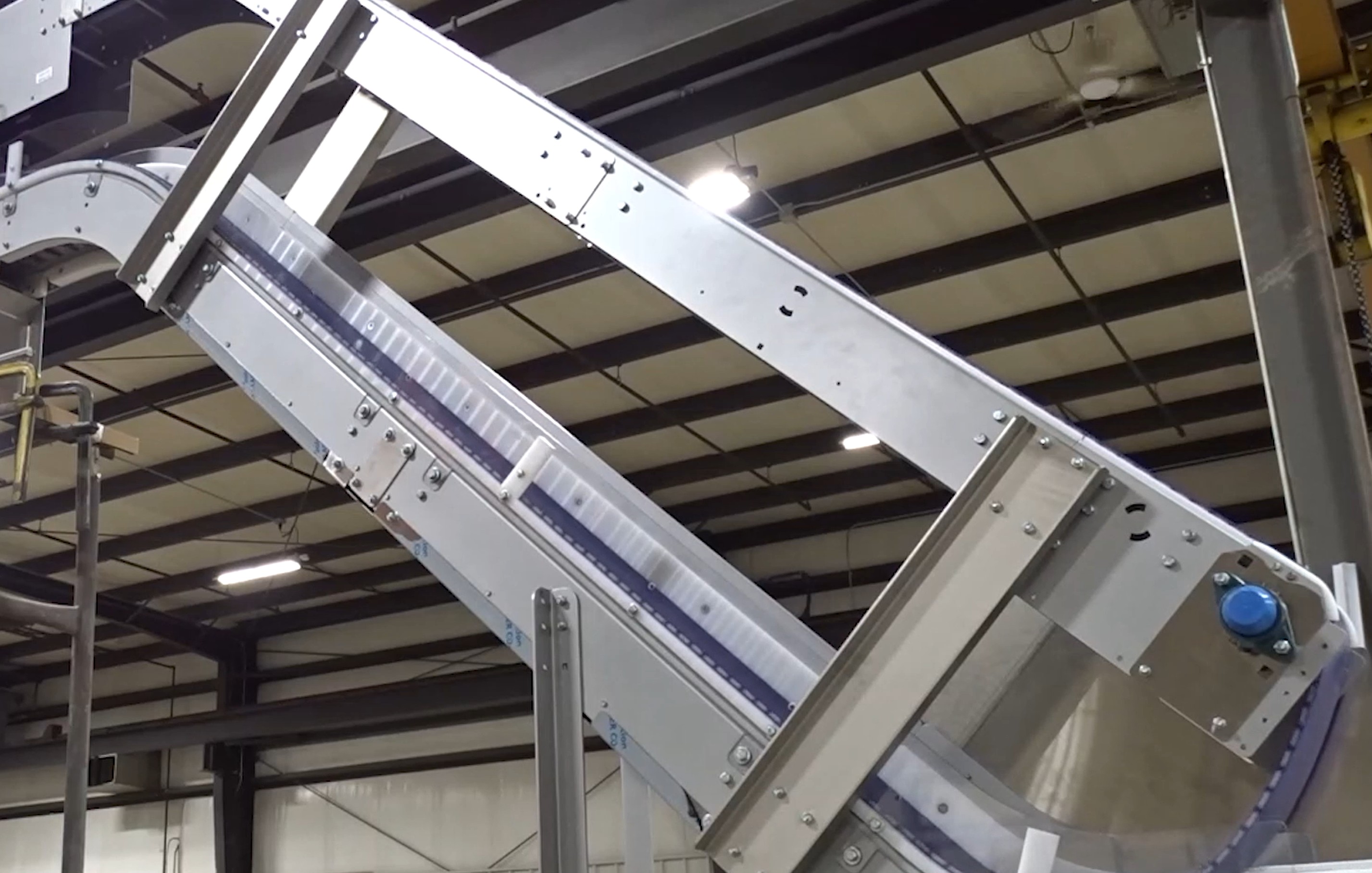

Draper Z Incline Conveyor by Nercon

Request a Quote Worker Icon

Contact Us

Looking for a solution designed specifically for your needs? Share the details of your project with us, and our team will create a customized quote tailored to your goals, budget, and requirements.

Contact Us

Operational Advantages

  • Provides safe access to hard-to-reach areas
  • Reduces travel steps with a passage on the production floor
  • Allows unrestricted access for:
    • Personnel
    • Fork trucks
    • Other moving equipment

Applications for Draper Z Incline Conveyor

  • Bundles
  • Cans
  • Cartons
  • Cases
  • Pouches
  • Tapered Cups
  • Trays

Application Types

In-Depth Product Specifications

Request Quote

Design & Specifications

  • Fixed incline angles: 30°, 45°, and 60°

  • Maximizes use of vertical space

  • Contributes to a small production floor footprint
