Spiral Conveyor

Compact, Versatile Product Elevation"

The Spiral conveyor is a compact and versatile elevating solution. Spiral can be designed to carry product between floors and machines or over aisles.

Request A Quote

Spiral Conveyor

Designed with a uniform slope, the Spiral conveyor ensures smooth operation without disturbing the product. A continuously moving table-top belt gently elevates or lowers the product.

See Our Products in Action

Watch Our Videos

Spiral Conveyor

Spiral Conveyors - Comparing Three Technologies

Request a Quote Worker Icon

Contact Us

Looking for a solution designed specifically for your needs? Share the details of your project with us, and our team will create a customized quote tailored to your goals, budget, and requirements.

Contact Us

Product Handling Applications

The Spiral conveyor is suited for fragile products that cannot handle impact or gripping. The equipment has been engineered to handle pies, trays, small packages, boxes and plastic containers.

Application Types

In-Depth Product Specifications

Request Quote

Operating Speed

  • Up to 150 feet per minute (varies with height change, product size, and weight)

Customizable Design

  • Multiple lanes, slope options, and belt widths available
  • Belt widths range from 3 1/4" to 15" (double 7 1/2")

Flexible Configuration

  • Adjustable in-feed and discharge locations to suit application needs

See Our Products in Action

Explore Our Product Image Gallery

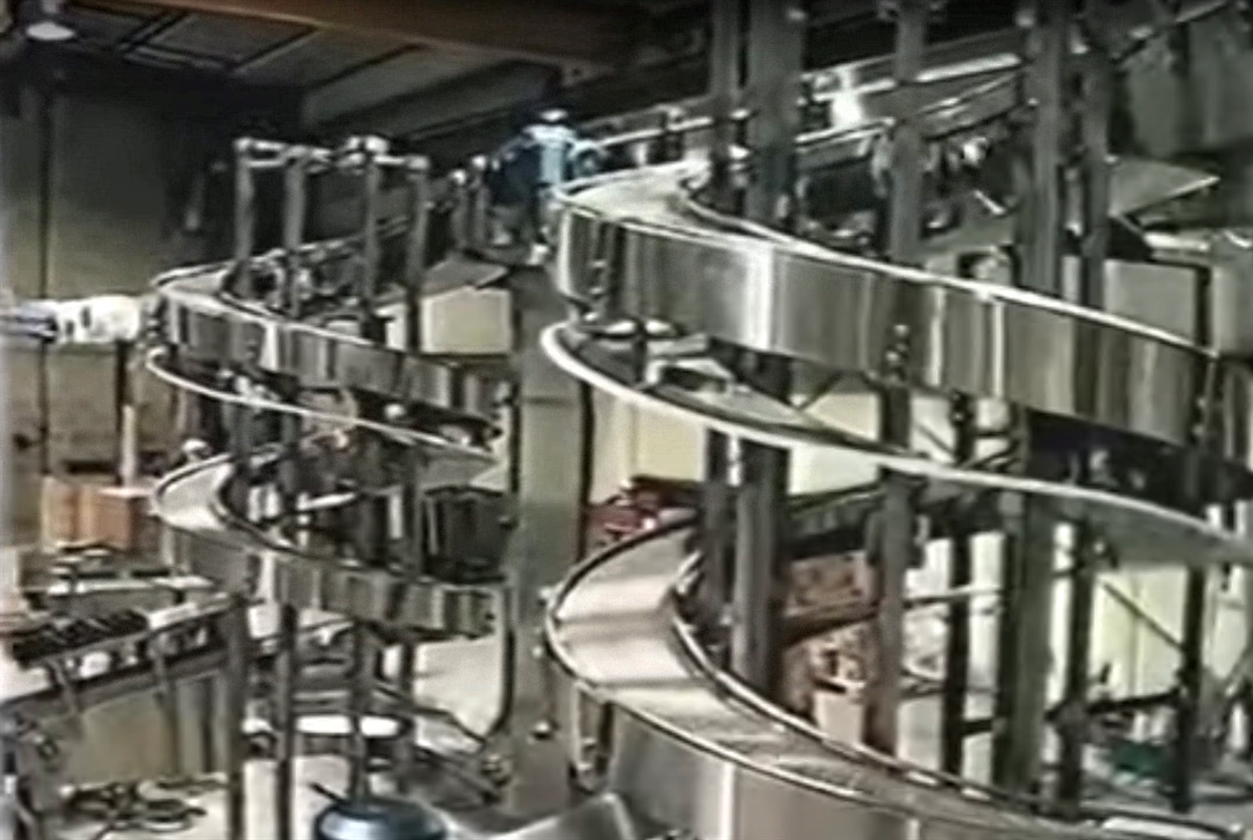

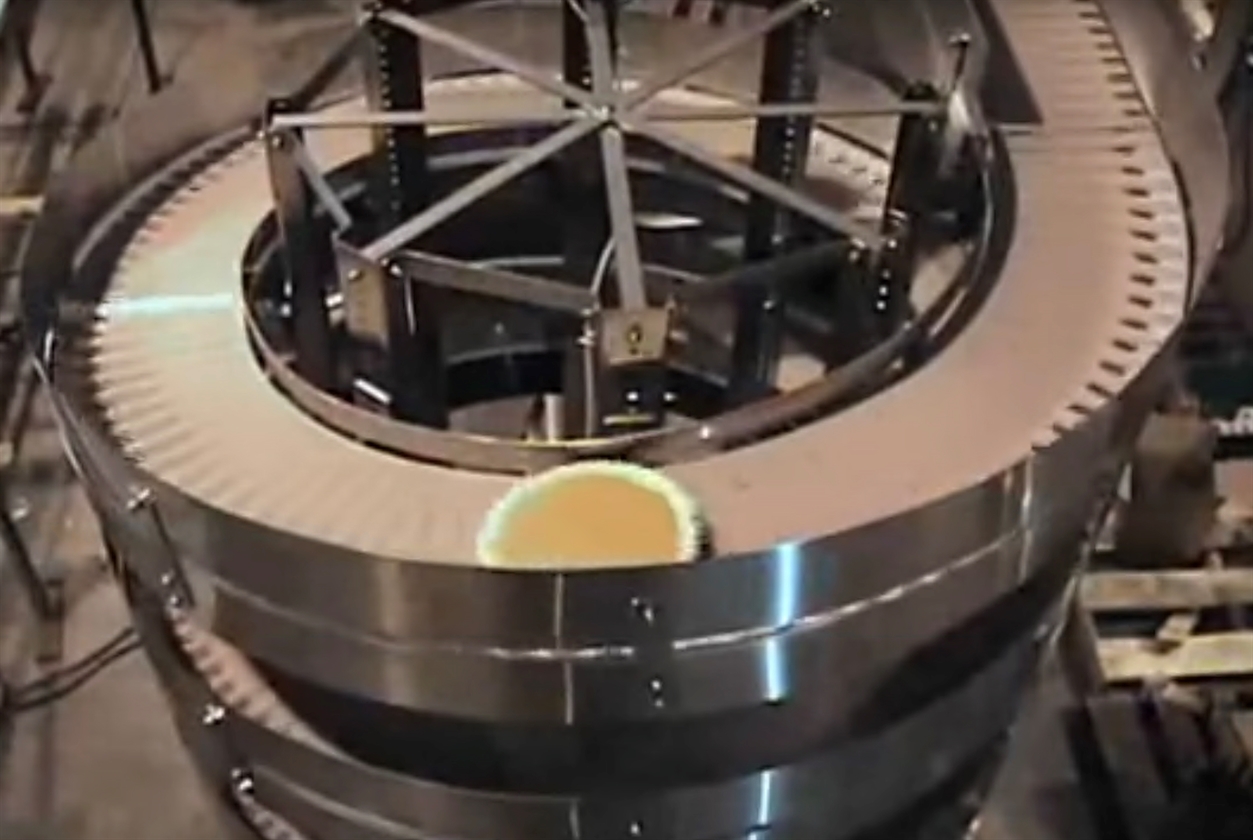

Spiral Conveyors are a compact and versatile elevating solution. This Spiral Conveyor has the flexibility for three different case sizes to be conveyed without any changeover.The Spiral Conveyor can also be engineered to clean room requirements, such as this bead blasted, sanitary design system conveying pies.This wash-down duty, Spiral Conveyor is made from bead-blasted stainless steel construction with continuous welds. Clean out holes are also featured on this equipment for access to cleaning.The Spiral Conveyor, available in painted mild steel or stainless steel as shown here, offers a small footprint for an elevating or lowering solutionThis dual-lane spiral elevator was designed to lower medical packages.A steep incline, the Spiral Conveyor was specifically engineered for the application of elevating low-profile cases.Spiral Conveyors are a proven choice for elevating and lowering trays, whether open or packaged.

Product Illustrations




Spiral Conveyor

Space saving Spiral conveyor has a footprint of either 48" or 60" (centerline) and a total width of either 107" or 119" from in-feed to exit point.

With a minimum elevation of 20", the maximum elevation of Nercon's Spiral Conveyor is determined by conveyor speed and product weight.
