Draper Z Incline Conveyor


Innovative Draper Z Incline Conveyor

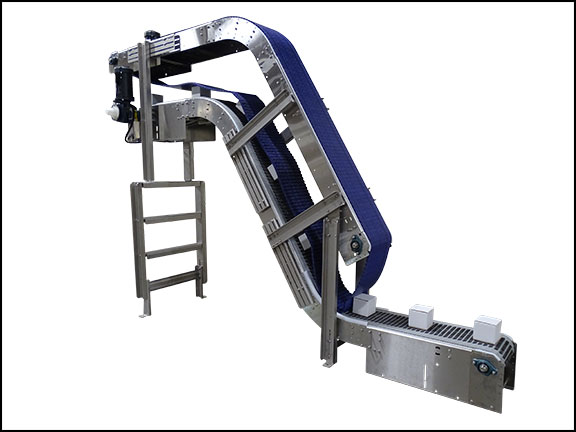

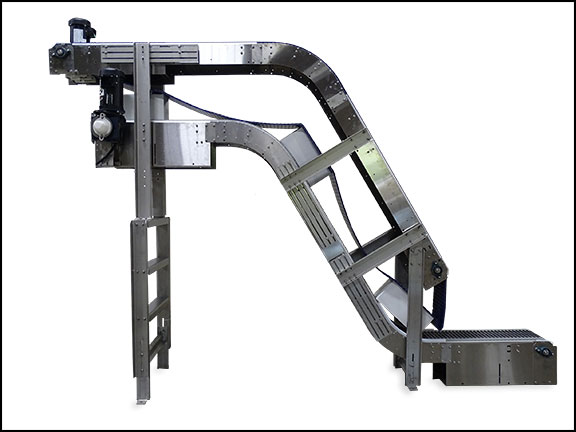

Made to provide manufacturers with an elevation solution that reduces changeover time, Nercon's Draper Z Incline conveyor elevates and lowers varying shaped products consecutively with no need for time-consuming changeover adjustments. The Draper Z Incline conveyor consists of a lower incline conveyor and an upper “draper” conveyor that gently drapes over the product shape. The self-contouring nature of the upper belt allows for a variety of product shapes, sizes, and weights to be moved while maintaining the integrity of orientation during an incline or decline to the next production stage. The draper also prevents backsliding of products & reduces tipping which allows for steeper incline angles than conventional incline conveyors.

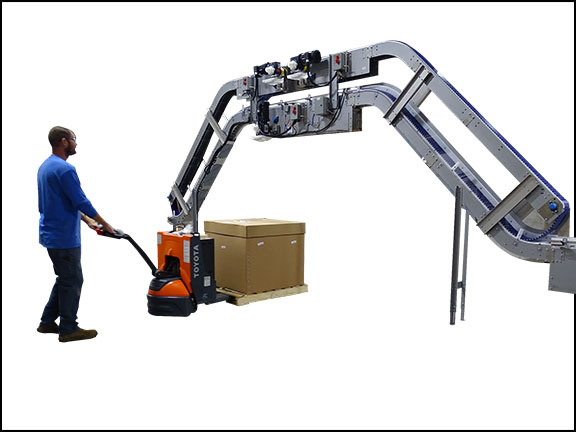

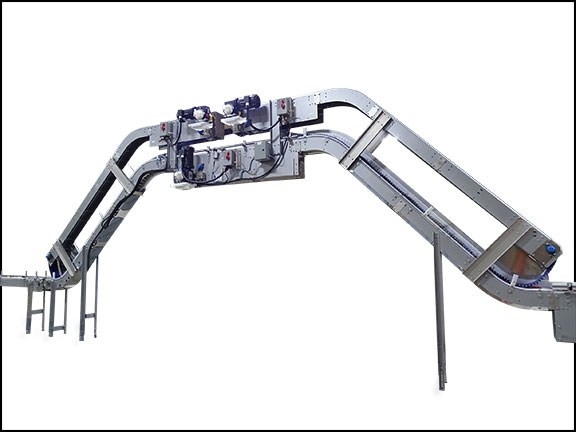

The draper z incline is made at fixed angles of 30, 45, and 60 degrees. These angles allow the draper to take advantage of vertical space and contribute to a small footprint on the production floor. Gaining safe access to hard-to-reach areas and reducing steps with a passage on the production floor, the draper z incline conveyor can also provide unrestricted access to personnel, fork trucks, and other moving equipment around the production floor.

Request a Quote

  • Photo Gallery
  • Video
  • Documents
  • Industries
  • Applications

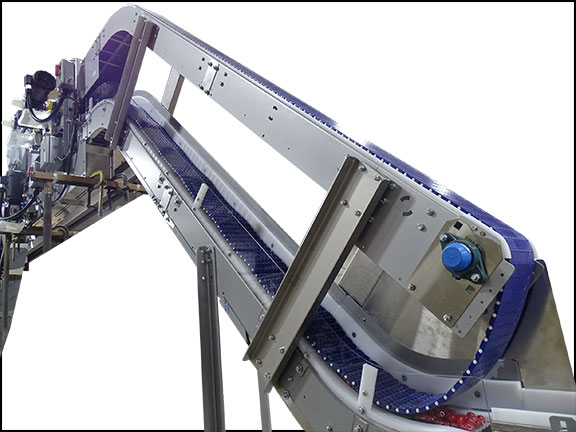

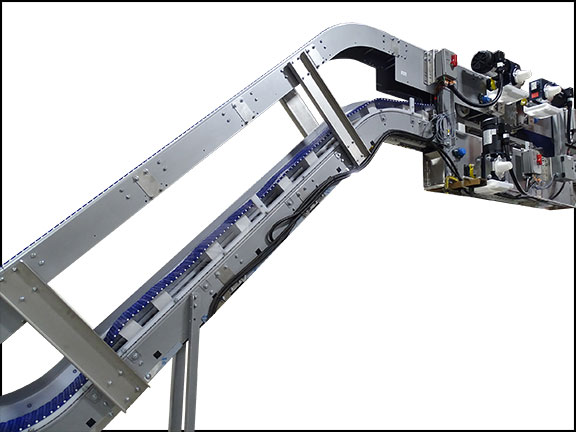

Draper Z Incline

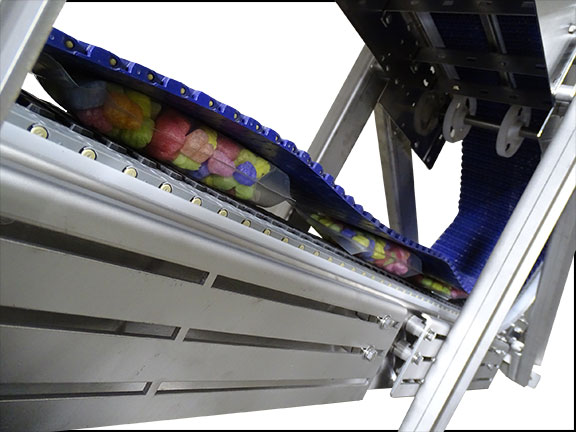

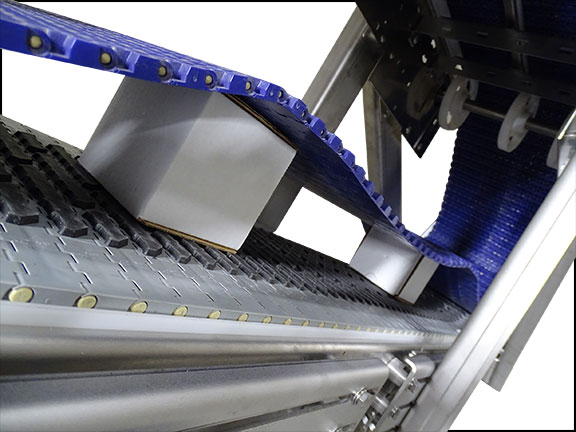

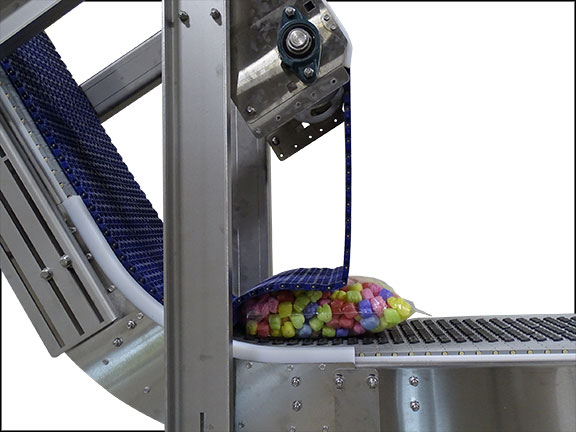

Chain Draping over Product

  • Bundles
  • Cans
  • Cartons
  • Cases
  • Pouches
  • Tapered Cups
  • Trays
