Low Profile Belt Conveyor

Available in 6", 8", 12", 18” and 24"

V-Guided Flat Belt Conveyor



Quality Guided Belt Conveyor

V-guided belt conveyors are a simple solution for conveyor system misalignment and malfunctions which can cause costly damage and failure to operations in a wide range of industries. To maintain a positive tracking system and increase operational standards and performance, a v-guided flat belt might be necessary.

By adding a "V" groove to the belt bed and a v-guide to the bottom of the belt, it will keep the system consistently centered and reduce belt edge-wear. Belt wandering, miss-tracks and friction will also be minimized reducing maintenance headaches and costs.

The belt is also designed to improve load distribution by supporting load consistency, reducing product weight wear, increasing uptime and production output while overall extending the life of the belt. The v-guided flat belt is ideal for inconsistent load distribution, side loading, diverting, and long center distance belts to maintain consistent and smooth transfers.

The width of the v-guided belts are available in 6", 8", 12", 18", and 24" with a maximum length of 15 feet. If a longer pull section is needed for your operations we recommend using Nercon's flat belt conveyors

Features

  • Vee groove guided belt
  • Stainless steel construction
  • Rack and Pinion belt tensioning
  • Timing belt drive
  • Shallow frame height to get into tight areas
  • Underslung motor to reduce conveyor width

Request a Quote

  • Photo Gallery
  • Documents
  • Illustrations
  • Industries
  • Applications

Low Profile Belt Conveyor


V Guide Belt Conveyor

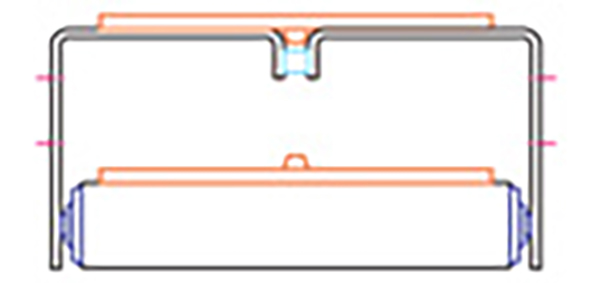

                     V-Guide Belt Design
