Conveyor Case Elevator
The Case Elevator is built for dependable performance. In over 35 years of experience in conveyor and equipment manufacturing, Nercon case elevators can be found in many industries including:
Case Elevators carry cartons or cases with two parallel flighted chains driven by a brake motor. The brake motor stops chain/flights to wait for cartons at the pickup area. The limit switch detects cartons and indexes upward.
Product Handling Applications
The case elevator can accomodate cases, bundles, cartons and packs. Depending on the application, the case elevator can index at 18 C P M. and handle case weights up to 40 lbs.
- Photo Gallery
An optional single point adjustable unit uses a hand-wheel crank to adjust to various product widths.

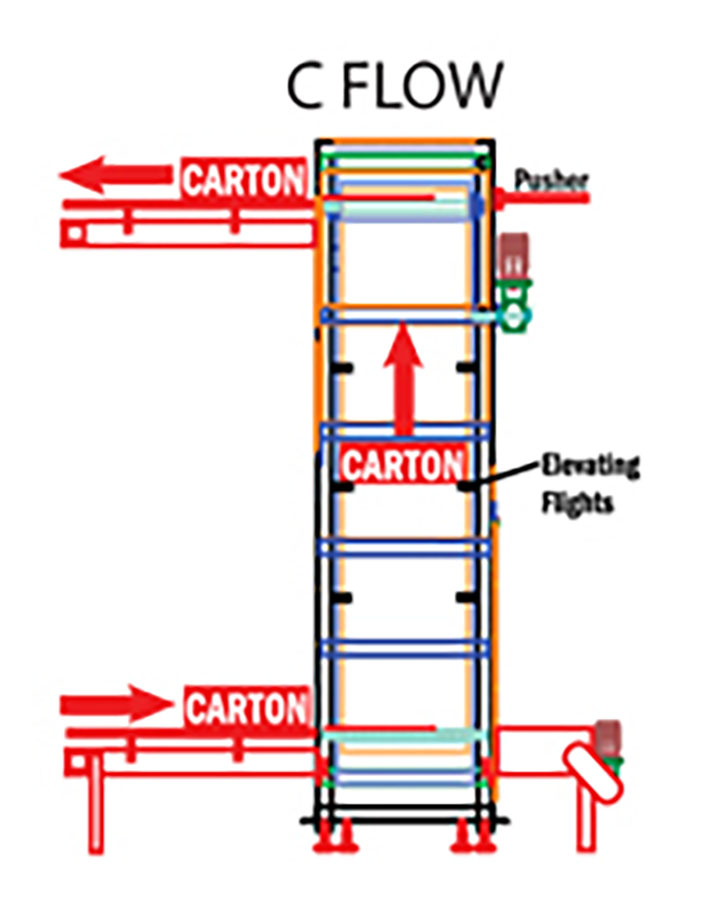

C - FLOW Configuration
The C-Flow configuration of the case elevator indexes or lowers cases and diverts them to discharge conveyors on the same side, but different elevation, as the infeed conveyors.
Case Elevator Infeed
Cases are delivered through the infeed before indexing on the parallel flighted chains.
The case elevator is available in painted mild steel or stainless steel construction.
C - Flow Configuration

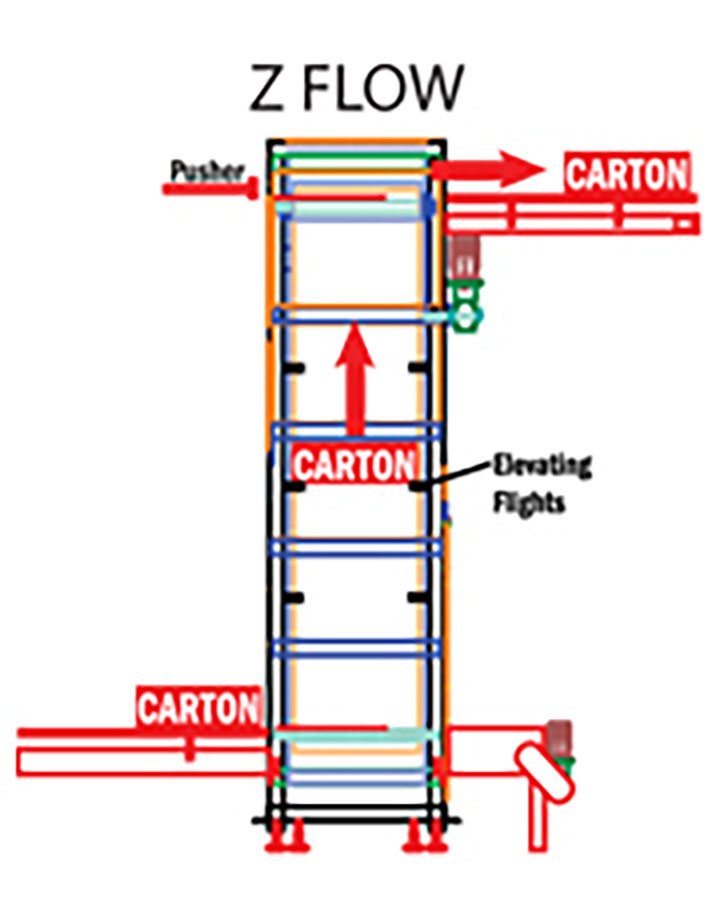

Z - Flow Configuration
